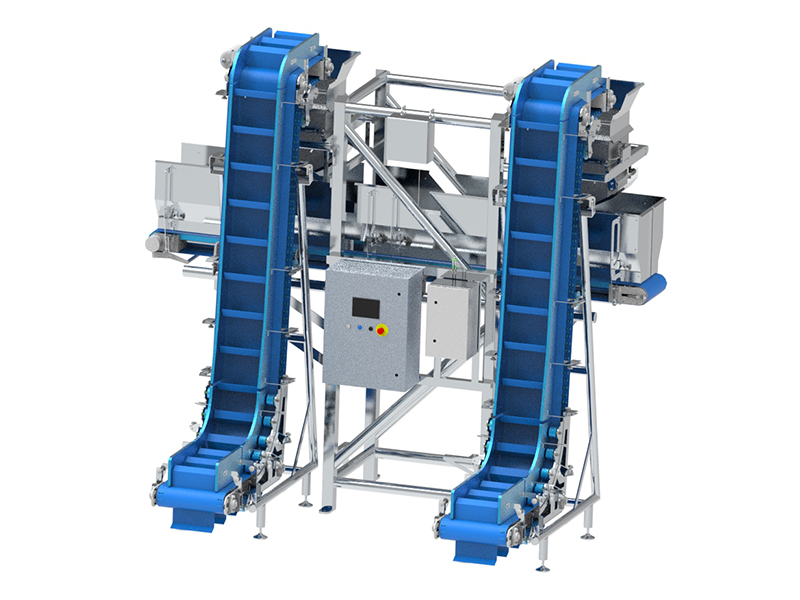

MULTI-PRODUCT WEIGHING LINE

AIT presents its new proposal for weighing and mixing products in the food industry. This line is designed and manufactured with the comfort and convenience of our customers in mind, automating a process that has traditionally been done manually.

Benefits

  • Feeding to the weighing hopper by means of vertical belts with positive drive. Manufactured in stainless steel (AISI 304) and with hygienic tubular chassis supported on height-adjustable anti-slip legs.
  • Both the belts and their guides are made of materials suitable for contact with food (TPU and PE-1000 respectively).
  • Weighing hoppers made of stainless steel (AISI 304), tubular hygienic chassis. Equipped with high precision load cells, equipped with a pneumatic opening system that will act when the specific proportions of each batch are reached.
  • Built-in bi-directional outfeed conveyor to collect the final mix.
  • Possibility of storing predefined recipes to speed up processes. It’s also possible to modify the mixing recipe in real time according to the customer’s needs.
  • Intuitive and adapted HMI incorporated and fully accessible.
  • Possibility of customisation according to the characteristics of your product and process.

Description

Ait’s automatic weighing and mixing line provides our customers with total flexibility and reliability in the treatment of their product once it has been processed. By automating a process that has traditionally been carried out manually or in a rudimentary way, we offer an automatic and independent solution that will boost the productivity of food processing.

Thanks to our extensive experience in the industry, we have achieved a solution where the customer only has to worry about the product reaching the two vertical feed belts to the weigh hoppers. From there, Ait takes care of the rest.

We use high-precision load cells to achieve exceptionally accurate weighing, maintaining the proportion of both products in each batch. We also offer a delay in the opening of the loading hoppers so that both products are discharged at the same point on the belt, thus favouring the homogeneous mixing of both products.

Technical information

  • Recipes programmable and interchangeable at any time.
  • Ait Remote, online connection module
  • E-Commerce for instant spare parts ordering.
  • In addition to design according to EHEDG principles and the highest requirements in cleanliness and hygiene, and with all sanitary and safety standards.
  • Made entirely of stainless steel (AISI 304) in our factory in Tudela de Navarra, Spain.

Requirements

  • Electrical supply at 400V (3P + N + G), consumption 1.5kW.
  • Pneumatic supply filtered and dry at 7 bar, consumption 6 litres/minute.
  • Adaptable to customer requirements.
